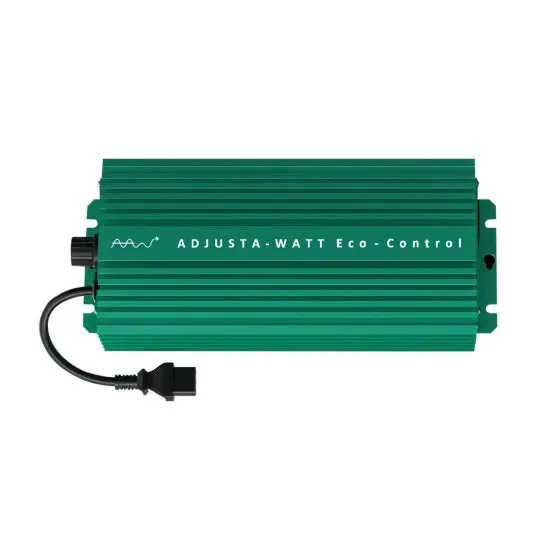

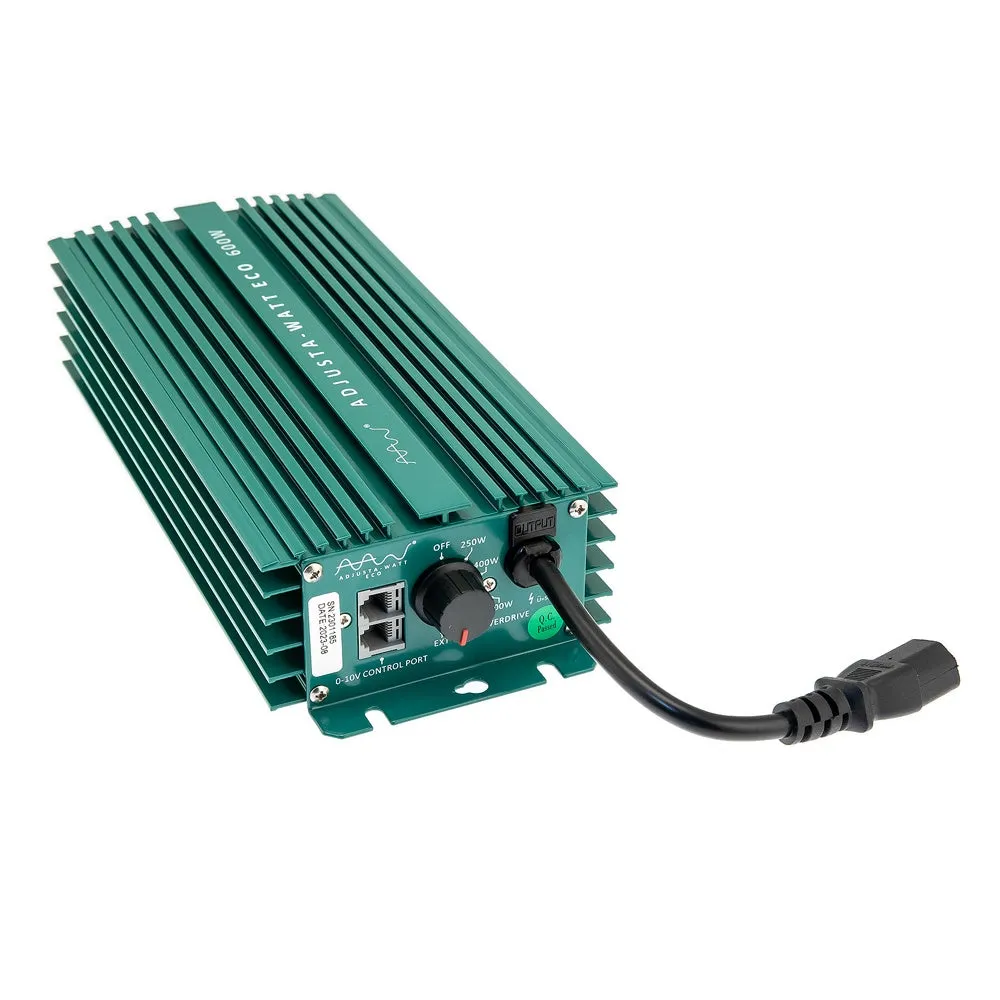

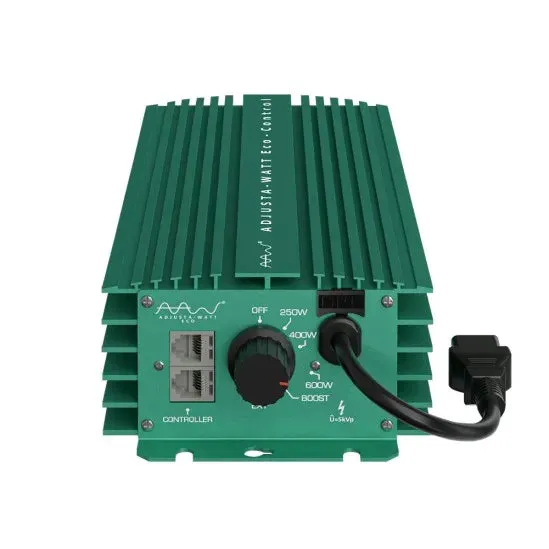

The Adjusta-Watt Eco-Control 600w Digital Ballast is a HPS ballast that works like other digi ballasts but also comes with PWM RJ14 connections..which means they can now be physically hooked up to external controllers like Telos Growcast, AC Infinity and Trolmaster! With the right adapters and software permitting by these external control manufacturers, you can remotely control the lights!

Manual for the

• PWM control with RJ14 ports
• Over-Drive for More Light
• Intelligent Circuit Protection Software
• Automatic Frequency Adjustment
• Hot Lamp Detection
• Suitable for High Pressure sodiums, metal halide & LED
• Cool operation, making it easier to maintain optimal cool growing conditions
• Efficient over magnetic ballast outputs, measured in lumens of light produced per watt of electricity, is considerably greater and the high frequency output reduces power loss and improves overall power management
• Instant start technology enables the lamp to reach its full radiance within 1 minute of activation
• The ballast operates silently, it is essential to always use good quality lamps from ‘like’ manufacturers

Specification:

• Output parameters.
• Open Circuit voltage – <400v
• Crest ratio – <1.7CF
• Efficiency – >91%
• Output plug IEC female plug
• Output cable – VDE HO5W-F3*1.0mm2
• Working voltage HPS 166-240V
• Working voltage LED – 60-240V
