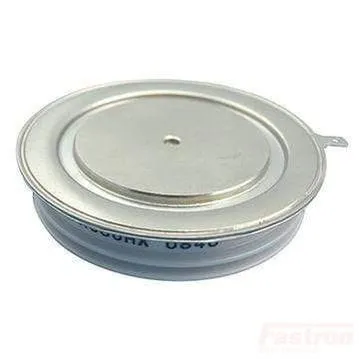

Reliance NL-410403-78AZ, Thyristor(SCR) PUK, 550 Amp, 1800V, 41/14
Features
- Very low forward voltage drop
- Very low leakage current
- International standard package
- 41/14 Package (14.5mm unclamped Thickness)
- Press Mounted
- Double or Single Sided Cooling
Applications
- Power Supplies
- Rectifier for drives applications
- Controlled Rectifiers
- AC Switch
- Battery Chargers
- Phase Controllers
- Water Cooled AC switches
- Power Factor Correction
- Drop In Replacement for NL-410403-78AZ (Reliance)
Specification
| Reliance Part Number | Reliance |
| Vrrm | 1800V |
| SCR Configuration | Thyristor(SCR) Capsule PUK |
| IF(av) @ 85 Deg C | 550 Amp |
| Package Size | ø41 x 14mm |
| Itsm | 9 kA |
| VF(to) | 0.925V |
| Tj(max) | 125°C |
| rF | 0.45mΩ |
| Gate Terminals | Faston 4.8 x 0.8mm & 2.8 x 0.8mm |
| R th(j-c) (double sided cooled 180°sin) | 0.047°C/W |
| R th(c-h) (double sided cooled) | 0.012°C/W |
| Weight | 140g |
| Clamping Force | 5.2-8 kN |
| Factory Pack Qty | 12 |
| Certification | ROHS |
| Semikron Headquarters | Germany |
