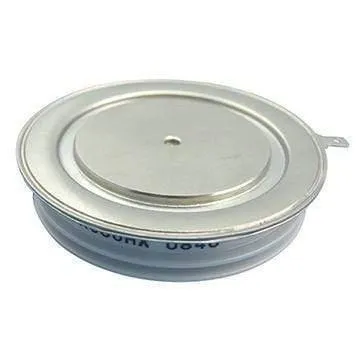

Semikron SKT1200/16E Thyristor(SCR) Capsule
Features
- Very low forward voltage drop
- Very low leakage current
- International standard package
- 74/26 Package
- Press Mounted
- Double or Single Sided Cooling
Applications
- Power Supplies
- Rectifier for drives applications
- Controlled Rectifiers
- AC Switch
- Battery Chargers
- Phase Controllers
- Water Cooled AC switches
- Power Factor Correction
Specification
| Semikron Part Number | SKT1200/16E |
| Vrrm | 1600V |
| SCR Configuration | Thyristor(SCR) Capsule PUK |
| IF(av) @ 85 Deg C | 1200 Amp |
| Package Size | ø74x 26mm |
| Itsm | 30 kA |
| VF(to) | 0.95V |
| Tj(max) | 125°C |
| rF | 0.18mΩ |
| Gate Terminals | Faston 4.8 x 0.8mm & 2.8 x 0.8mm |
| R th(j-c) (double sided cooled 180°sin) | 0.054°C/W |
| R th(c-h) (double sided cooled) | 0.0224°C/W |
| Weight | 480g |
| Clamping Force | 22 - 25kN |
| Factory Pack Qty | 12 |
| Certification | ROHS |
| Semikron Headquarters | Germany |
