The Zamp Solar OBSIDIAN Series 100 Watt Solar Panel Deluxe Kit is the perfect expandable kit for solar charging any RV or trailer. This compact and easy-to-install complete system has many configurations and a lot of charging potential for your application. This is base kit is designed to expand up to 700 watts.

The OBSIDIAN® SERIES 100-Watt panel works with all 12-Volt battery types. As thin as a flexible panel and 30% lighter than a traditional panel without compromising efficiency, this American-made panel also features an ultra-aerodynamic profile and a sleek black anodized aluminum frame.

This Kit Includes: KIT1033

Zamp Solar OBSIDIAN Series 100 Watt Solar Panel:

• Weight: 10.78 lbs
• Panel Dimensions: 43.6” tall x 20.7” wide x .67” thin
  Wattage Output: 100-Watt Power Output
• Amp Output: 5.01 amps
• Open Circuit Voltage: 26.15 volts
• Warranty: 25-Year output

Mounting Solution:

• Set of 4 Universal Reversible Mounting Feet Kit

Solar Panel Wiring:

• 10’ ATP to ATP Wiring Extension

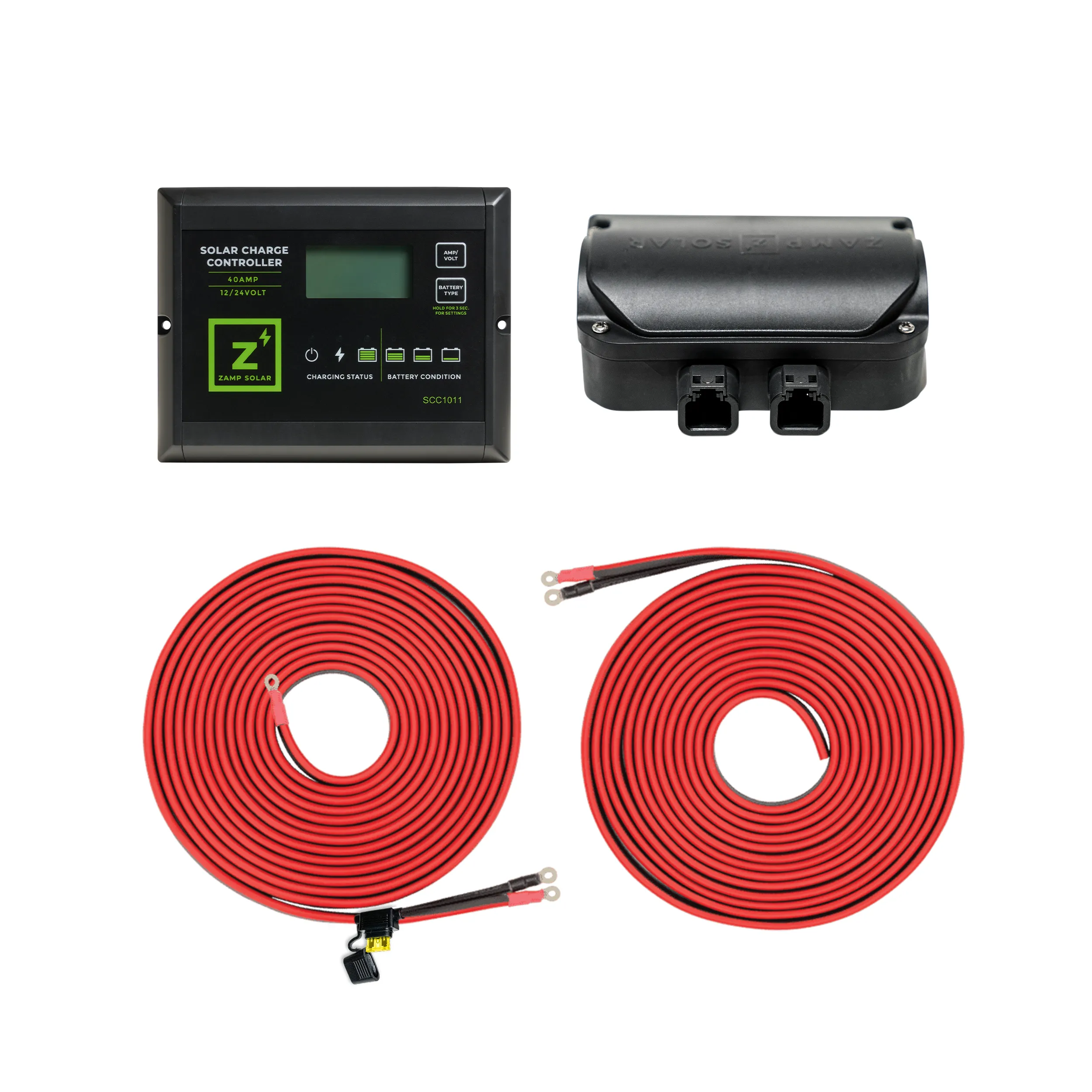

40-Amp PWM Digital Charge Controller:

• Safety Built-In - will not overcharge the battery
• Smart charging - 5-stage charger
• Automatically turns on and off
• Surface mount, mounting screws included

2-Port ATP Solar Roof Cap:

• Plug any Zamp Solar panel directly into the cap
• Easily expandable
• Equipped with mounting hardware and a gasket

Complete Wiring Harness:

• Pre-terminated for fast installation
• 15ft Roof Cap to Charge Controller wire
• 10ft Charge Controller to battery wire (fused)

40 Amp 5-Stage PWM Charge Controller:

Zamp Solar 40-amp charge controller can regulate up to 800 watts and is compatible with Lithium, Gel, AGM, Conventional lead-acid (wet) batteries, and LTO.

• Lithium Battery BMS Wakeup Feature: Integrated solar boost functionality will deliver the power necessary to wake a BMS (battery management system) when a hibernation event is triggered, resulting in a non-responsive battery. Simply use the solar controller to get your system back on track and charging again.
• Protects and Regulates: All our charge controllers use pulse width modulation (PWM) and five stages of charging to regulate the flow the electricity to your battery. This protects your battery from overcharging, expands your battery's lifespan, and keeps your panel safe from back-flow electrical currents, among many other protections and benefits.
• Monitors and Indicates: Its large digital display lets you monitor battery voltage, charging current, charging capacity (amps per hour), battery types, full charge, and system faults. Colored LEDs indicate operational status and battery conditions.
• Flexible and Customizable: Our 40-amp charge controller is weather resistant and can be surface-mounted on your wall or flush-mounted inside the wall. It is compatible with our battery temperature cable and our remote LCD display that lets you keep tabs on your power from wherever it's most convenient.
